Accent

A slimmed-down version of the Standard wall unit, Accent units measure 4 inches tall by 12 inches wide. They're lighter than Standard units, but engineered with the same high-strength, low-absorption concrete. Easily installed, Accent units draw minimal attention to the wall, saving the spotlight for pools, gardens, and other features of the surrounding landscape.

Contact your local dealer for information about product and color availability.

Units

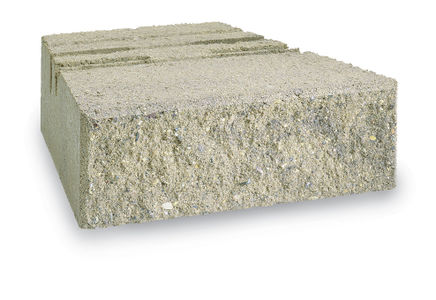

Accent Unit

Depth (in):12
Depth (mm):304.8
Height (in):4
Height (mm):101.6
Face width (wide) (in):12
Face width (wide) (mm):304.8
Face width (narrow) (in):8
Face width (narrow) (mm):203.2
Face area (sq. ft.):0.33
Face area (sq. m.):0.015
Minimum radius(ft.):3
Maximum unreinforced height(ft.) :4
Maximum geogrid reinforced height:50+
Setback:"3/4"" or 1/4"" per unit"
Batter/Cant:10.6 or 3.6
Weight (lbs):36
Weight (kg):16.33

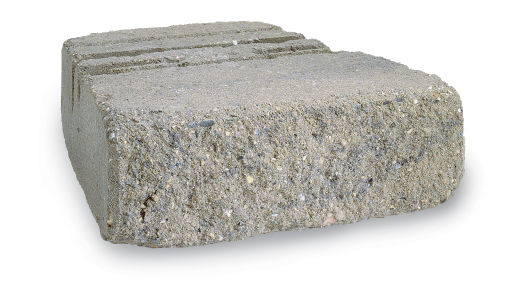

Accent unit (weathered)

CAD Details

General


​Additional available literature

Mail Download
VERSA-LOK SRW Capabilities Brochure

VERSA-LOK SRW Capabilities Brochure

This brochure provides an introduction to VERSA-LOK's solid, top-pinning retaining wall systems.

Technical Bulletin #1-Shorelines, Waterways, and Retention Pond Protection

Technical Bulletin #1-Shorelines, Waterways, and Retention Pond Protection

Guidelines for using VERSA-LOK Retaining Wall Systems in a water environment. Foundation strength, scour, hydrostatic build up, and fines migration are addressed.

Technical Bulletin #5-Base Installation

Technical Bulletin #5-Base Installation

The components of a VERSA-LOK retaining wall base are explained, as is proper leveling pad construction.

Technical Bulletin #4-Caps

Technical Bulletin #4-Caps

Tips on capping straight and curved walls. Includes directions for using caps as treads when installing VERSA-LOK steps.

Technical Bulletin #7-Tiered Walls

Technical Bulletin #7-Tiered Walls

Considerations for construction of tiered retaining walls, including spacing requirements, are addressed.

Technical Bulletin #8-Fences, Railings, and Traffic Barriers

Technical Bulletin #8-Fences, Railings, and Traffic Barriers

Discusses top-of-the-wall barriers including fences, guide rails, concrete traffic barriers, and stair rails.
