Bronco 18H

Need to supersize? Meet a heavyweight.

When you’ve got a project that requires a heavy-duty retaining wall, call for the Bronco 18H retaining wall system, the new heavyweight segmental system from VERSA-LOK. Weighing in from 1,250 to 3,195 pounds and displaying 6 square feet of face area per unit and a 3.2° batter, the Bronco 18H system has the heft and coverage to tackle any job. Alignment knobs molded into the top of units and channels molded into the bottom ensure correct near-vertical positioning and allow for tight joints with variable-bond construction.

The Bronco 18H system comprises 13 units: three units with varying depth, half unit, L/R corner units, cap unit, L/R corner caps, freestanding unit, freestanding half unit, freestanding end unit and universal flat cap. Bronco 18H can be used for walls up to 15 feet tall without soil reinforcement, making it ideal for projects with excavation constraints. It easily accommodates geogrid, such as VERSA-Grid, for taller walls. With near vertical construction and variable bond, Bronco 18H is more versatile than other comparable products. After installation, the natural stone appearance of the Bronco 18H wall face can be enhanced with stain to blend into the natural environment.

Product and color availability might be limited in some regions. Contact your local dealer for more information.

Units

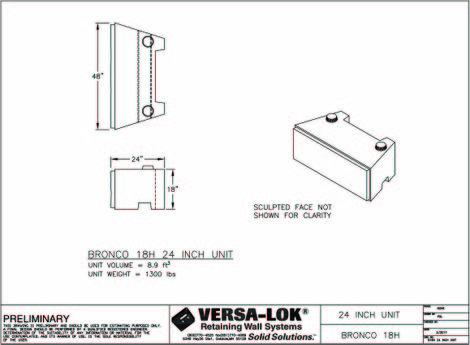

24" Deep Unit

Depth (in):24
Height (in):18
Face width (wide) (in):48
Face area (sq. ft.):6
Minimum radius(ft.):17
Maximum unreinforced height(ft.) :5
Maximum geogrid reinforced height:20+
Setback:1"
Batter/Cant:3.2
Weight (lbs):1215
Weight (lbs) with aggregate fill:1525

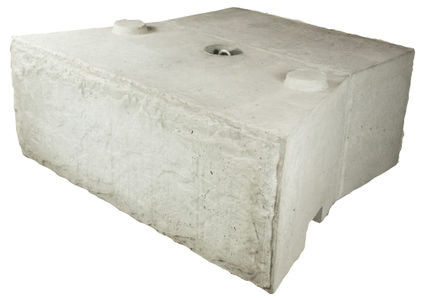

41" Deep Unit

Depth (in):41
Height (in):18
Face width (wide) (in):48
Face area (sq. ft.):6
Minimum radius(ft.):17
Maximum unreinforced height(ft.) :10
Maximum geogrid reinforced height:20+
Setback:1"
Batter/Cant:3.2
Weight (lbs):2215
Weight (lbs) with aggregate fill:2705

60" Deep Unit

Depth (in):60
Height (in):18
Face width (wide) (in):48
Face area (sq. ft.):6
Minimum radius(ft.):17
Maximum unreinforced height(ft.) :15
Maximum geogrid reinforced height:20+
Setback:1"
Batter/Cant:3.2
Weight (lbs):3195
Weight (lbs) with aggregate fill:4015

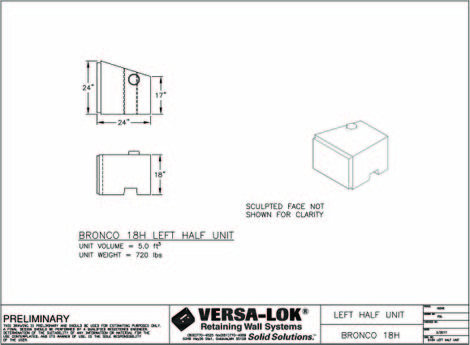

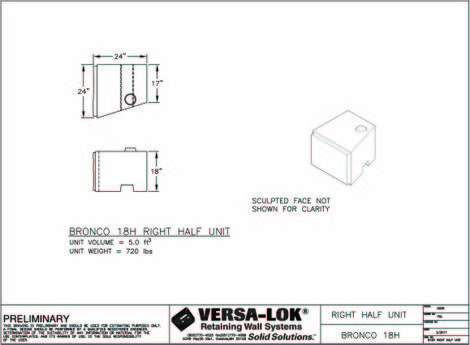

Half Block Unit

Depth (in):24
Height (in):18
Face width (wide) (in):24
Face area (sq. ft.):3
Weight (lbs):695
Weight (lbs) with aggregate fill:790

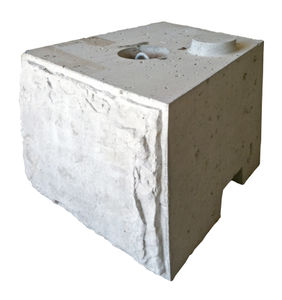

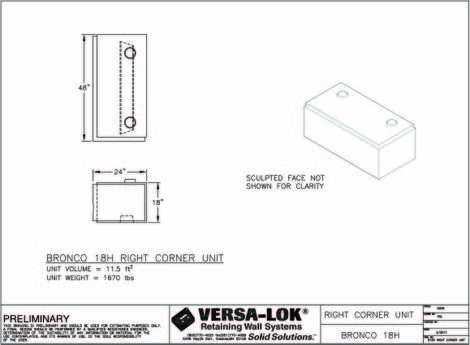

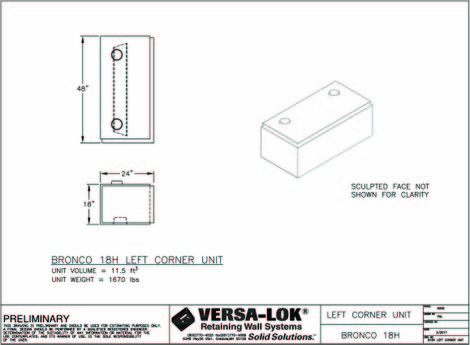

Corner Unit (left & right versions)

Depth (in):24
Height (in):18
Face width (wide) (in):48
Face area (sq. ft.):8
Weight (lbs):1420
Weight (lbs) with aggregate fill:1535

Cap Unit

Depth (in):24
Height (in):18
Face width (wide) (in):48
Face area (sq. ft.):6
Weight (lbs):895
Weight (lbs) with aggregate fill:1495

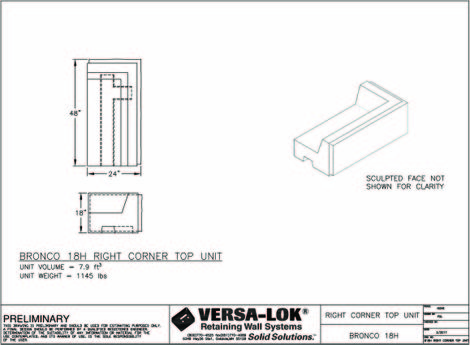

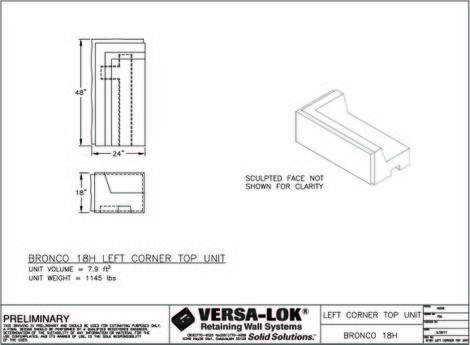

Corner Cap Unit (left & right versions)

Depth (in):24
Height (in):18
Face width (wide) (in):48
Face area (sq. ft.):8
Weight (lbs):1070
Weight (lbs) with aggregate fill:1490

Universal Flat Cap Unit

Depth (in):26
Height (in):6
Face width (wide) (in):48
Face area (sq. ft.):2
Minimum radius(ft.):17 (cut required)
Weight (lbs):550

Freestanding Unit

Depth (in):22.5
Height (in):18
Face width (wide) (in):48
Face area (sq. ft.):6 (front and back each)
Minimum radius(ft.):17 (cut required)
Weight (lbs):1285

Freestanding End/Corner Unit

Depth (in):22.5
Height (in):18
Face width (wide) (in):48
Face area (sq. ft.):6 front and back each. 2.8 end
Minimum radius(ft.):17 (cut required)
Weight (lbs):1345

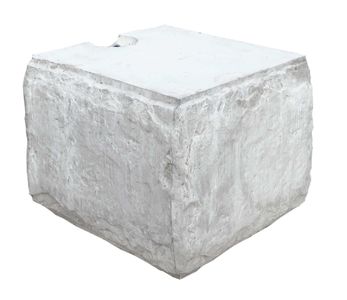

Freestanding Half Unit

Depth (in):22.5
Height (in):18
Face area (sq. ft.):3 front and back each 2.8 end
Minimum radius(ft.):17 (cut required)
Weight (lbs):600

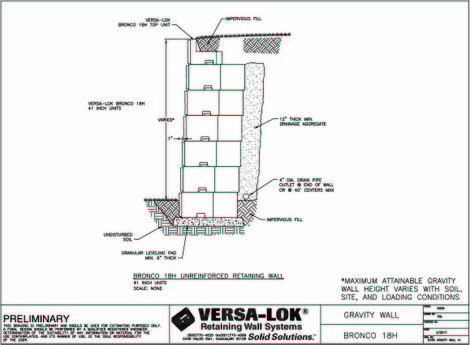

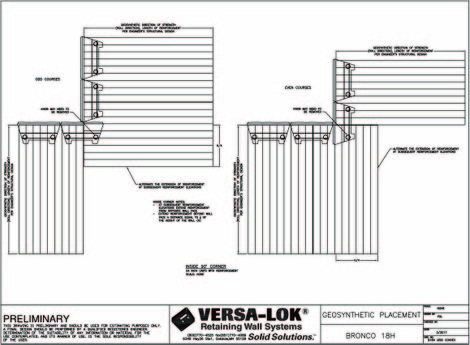

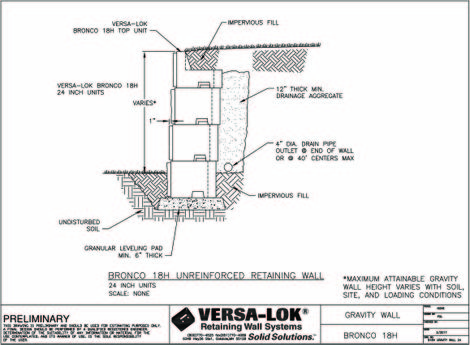

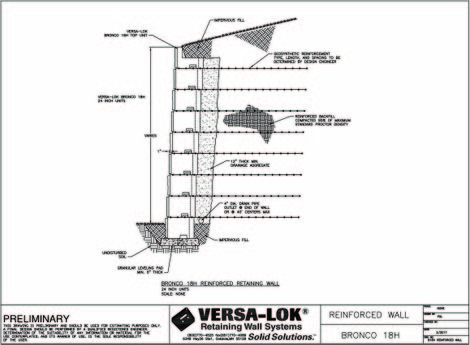

CAD Details

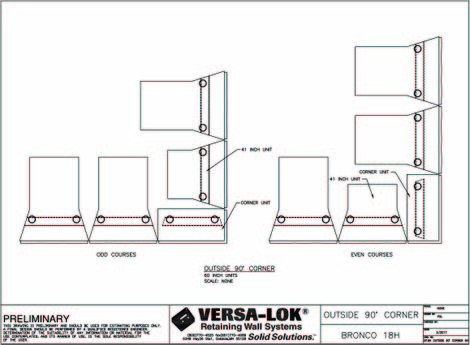

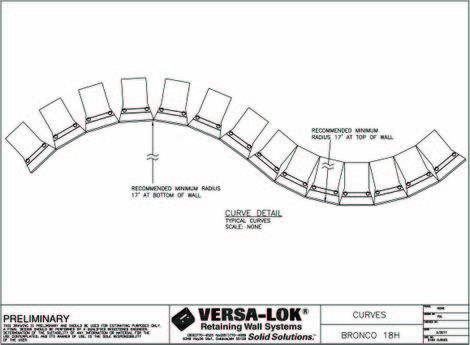

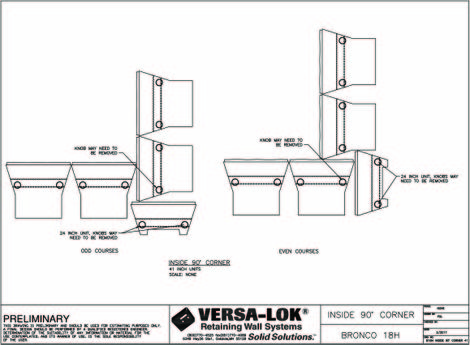

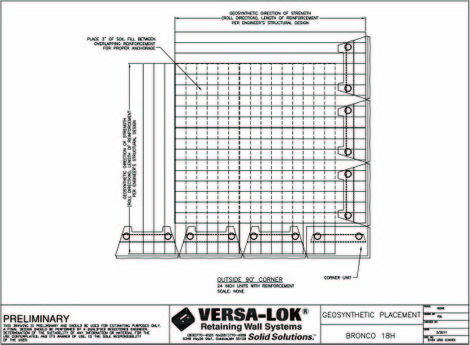

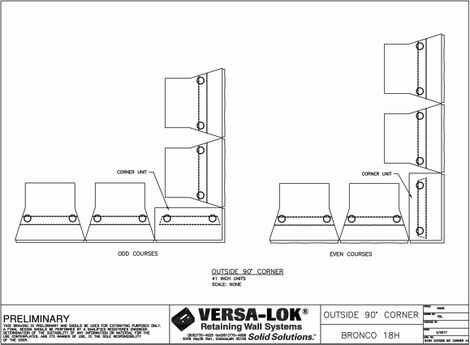

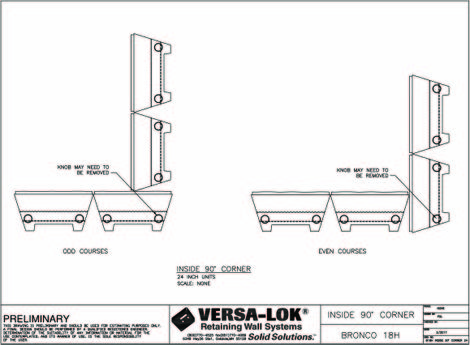

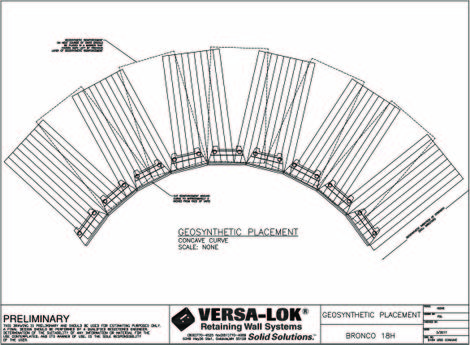

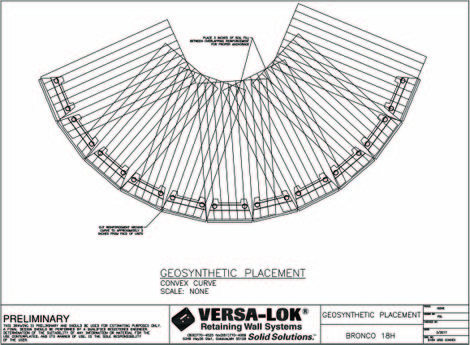

Curves & Corners
